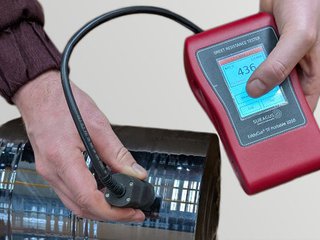

EddyCus® portable 1010 PS Series – Contact Handheld Device With Pen For
Sheet Resistance, Metal Layer Thickness, Resistivity and Emissivity Measurement

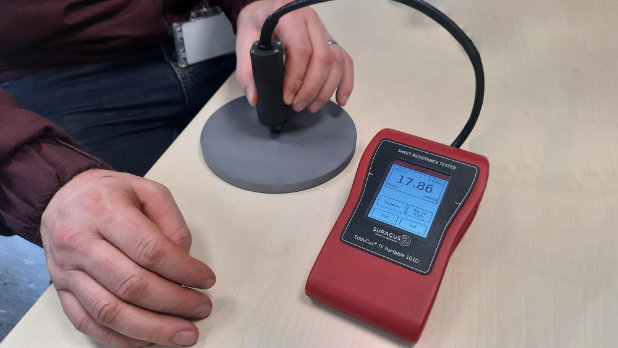

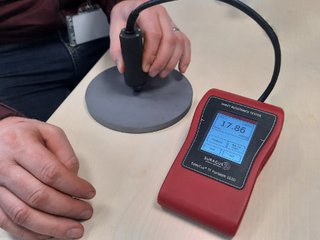

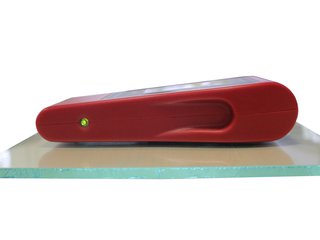

The EddyCus® portable 1010 PS is a handy and portable measurement device for fast contact measurement of large glasses, foils, pucks and boules in production or in the field, for example for quick quality checks after manufacturing or as incoming good inspection. The handheld device allows the measurement even of hidden and encapsulated layers. It is an easy-to-use device that is controlled via a touch display.

Highlights

• Small and portable measurement device
• Manual measurement
• Instant live measurement
• Digital data collection and data transmission via Bluetooth
• Characterization of hidden and encapsulated conductive layers

Types

• Sheet res­ist­ance tester – EddyCus® portable PS (Ohm/sq)
• Resistivity tester – EddyCus® portable PS (mOhmcm)

Ap­plic­a­tions

• Manual qual­ity con­trol, in­com­ing in­spec­tion, in­spec­tion of out­go­ing goods
• Con­tact characterization of con­duct­ive materials
• Single point meas­ure­ment in con­tact (measurement with con­stant dis­tance on re­quest)
• Planar sur­faces from
  • 150 x 150 mm for thin films (setups for 50 x 50 mm and 100 x 100 mm on request) and
  • 50 x 50 x 10 mm for bulk materials

Areas of Application

• Architectural Glass (LowE)
• Mirror Coatings
• Reflective layers
• Packaging foils
• Electrode layers in smart / electrochromic glass and energy storage
• Battery electrodes
• Conductive paper and conductive textiles
• Ingots, boules and pucks

Soft­ware and Device Con­trol

• User-friendly user in­ter­face
• Touch dis­play
• Di­git­al data track­ing
• Long bat­tery life­time (ap­prox­im­ately 10h in con­tinu­ous op­er­a­tion)
• In­stant meas­ure­ment of sheet res­ist­ance and cor­rel­ated prop­er­ties such lay­er thick­ness and emissiv­ity and data aggregation
• Bluetooth interface
